DRAFTING AND DRAWING OF THE BUILT ENVIRONMENT

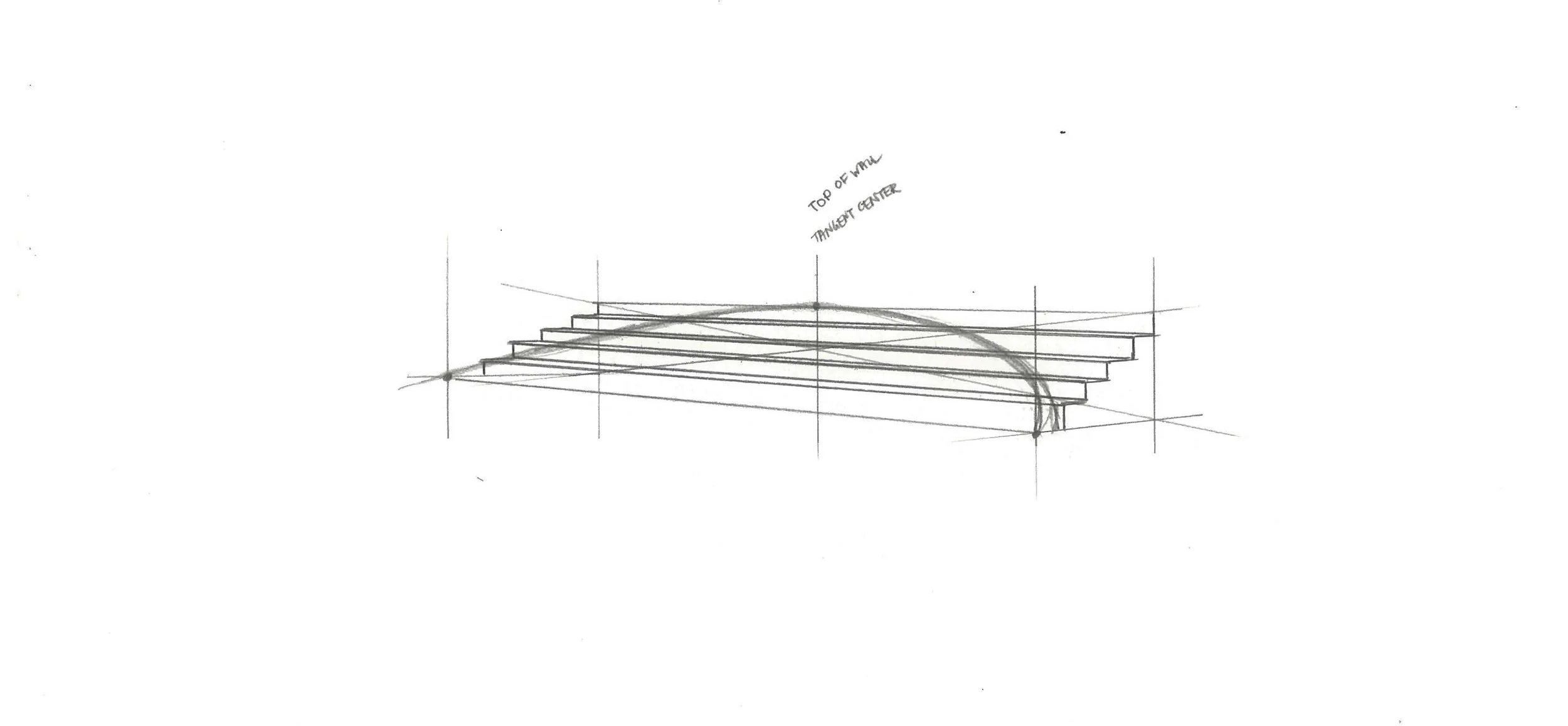

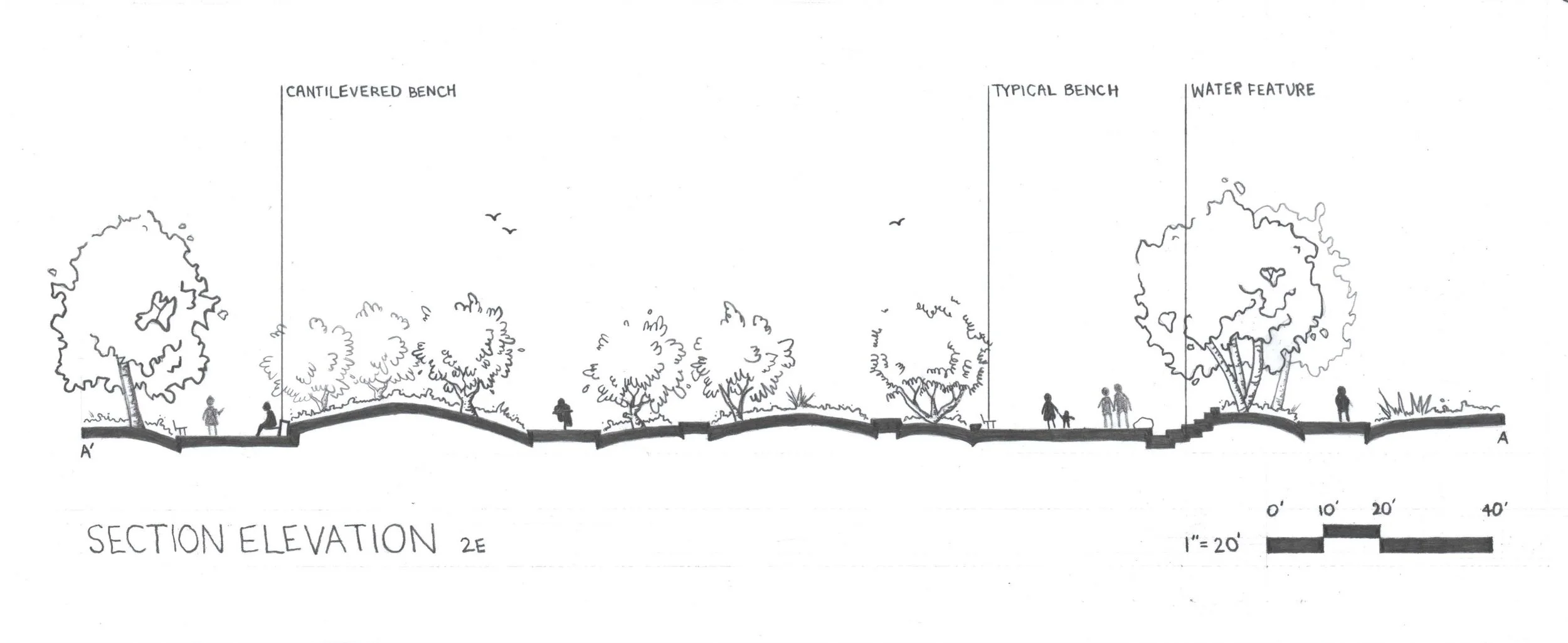

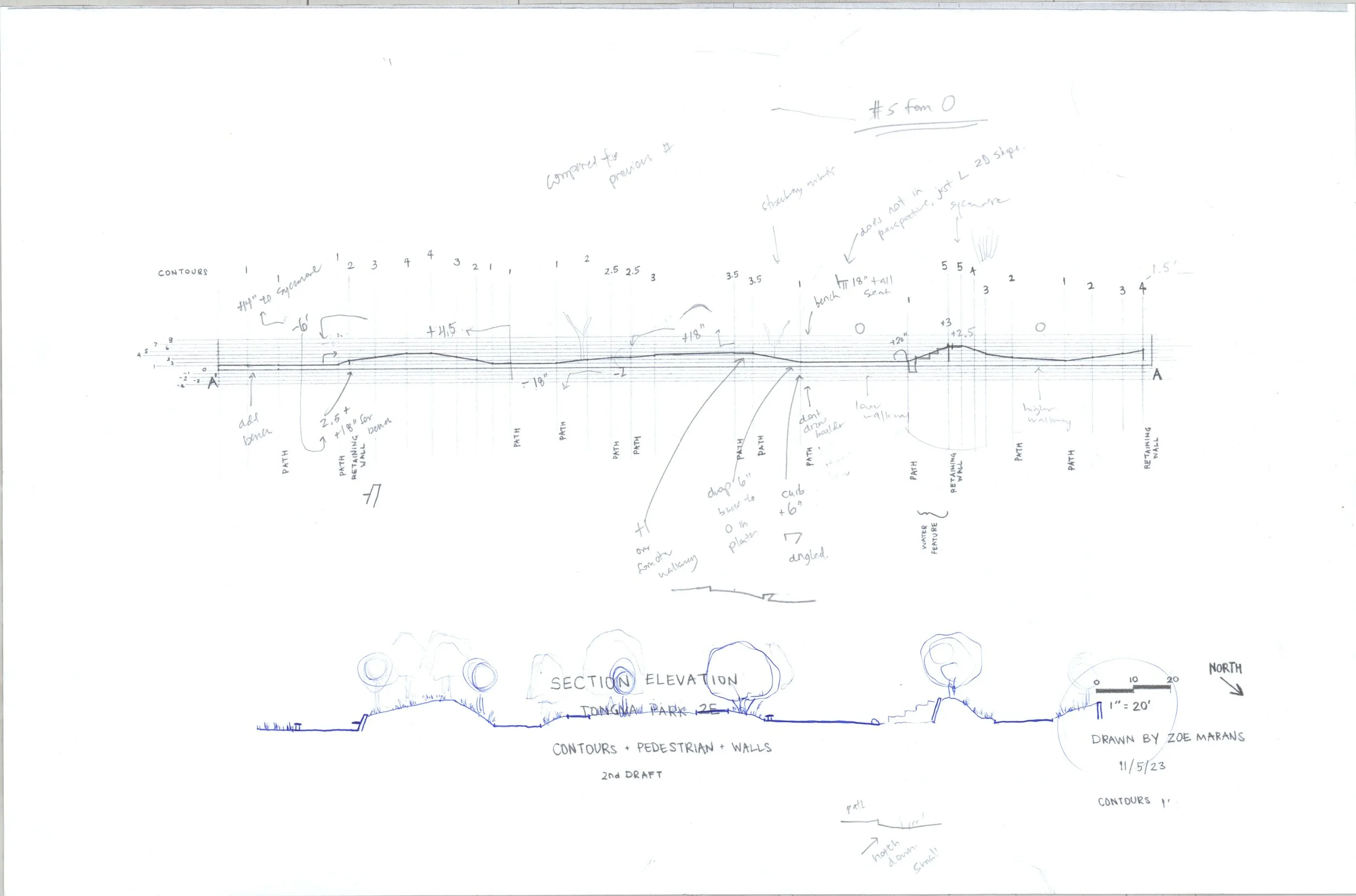

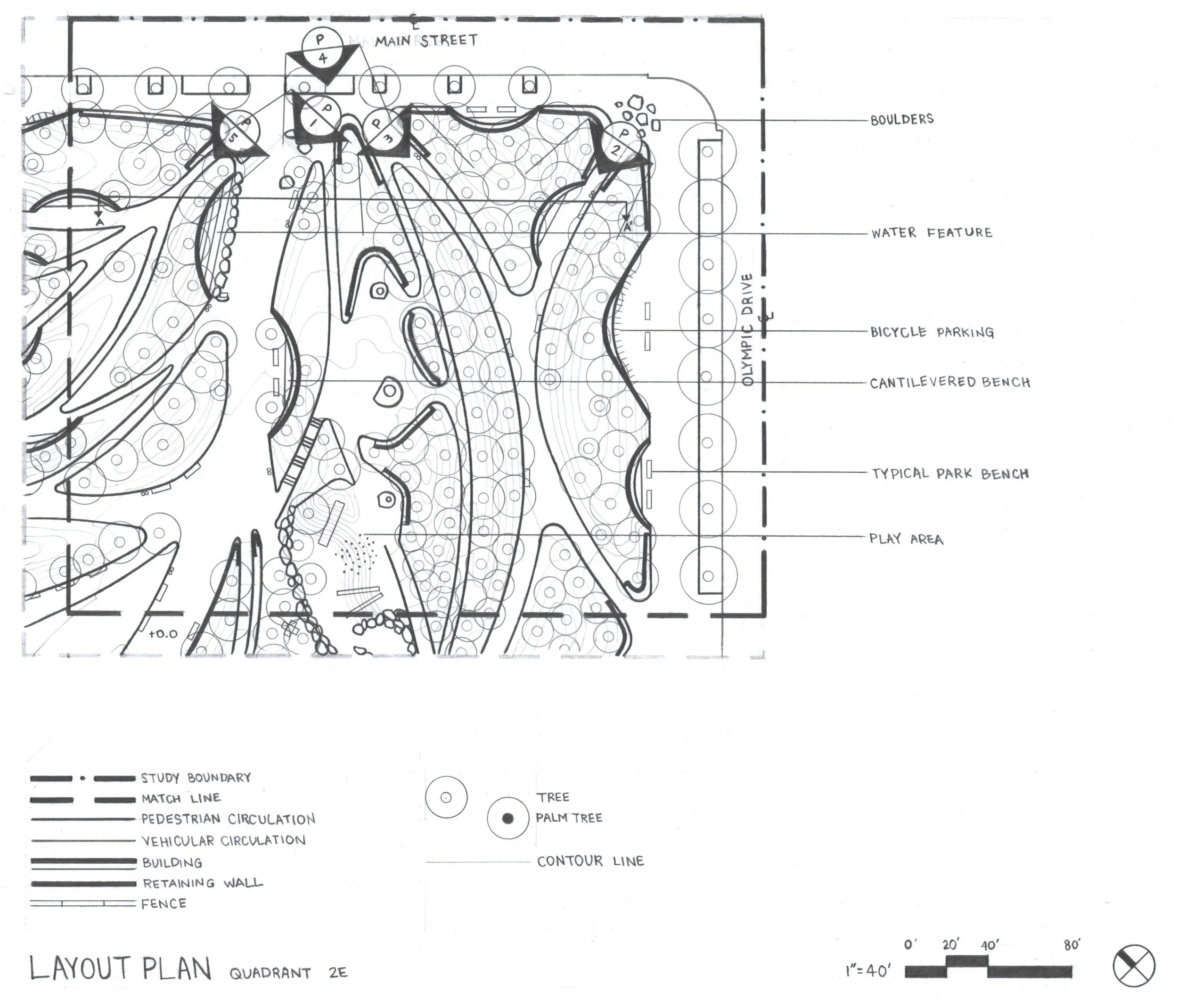

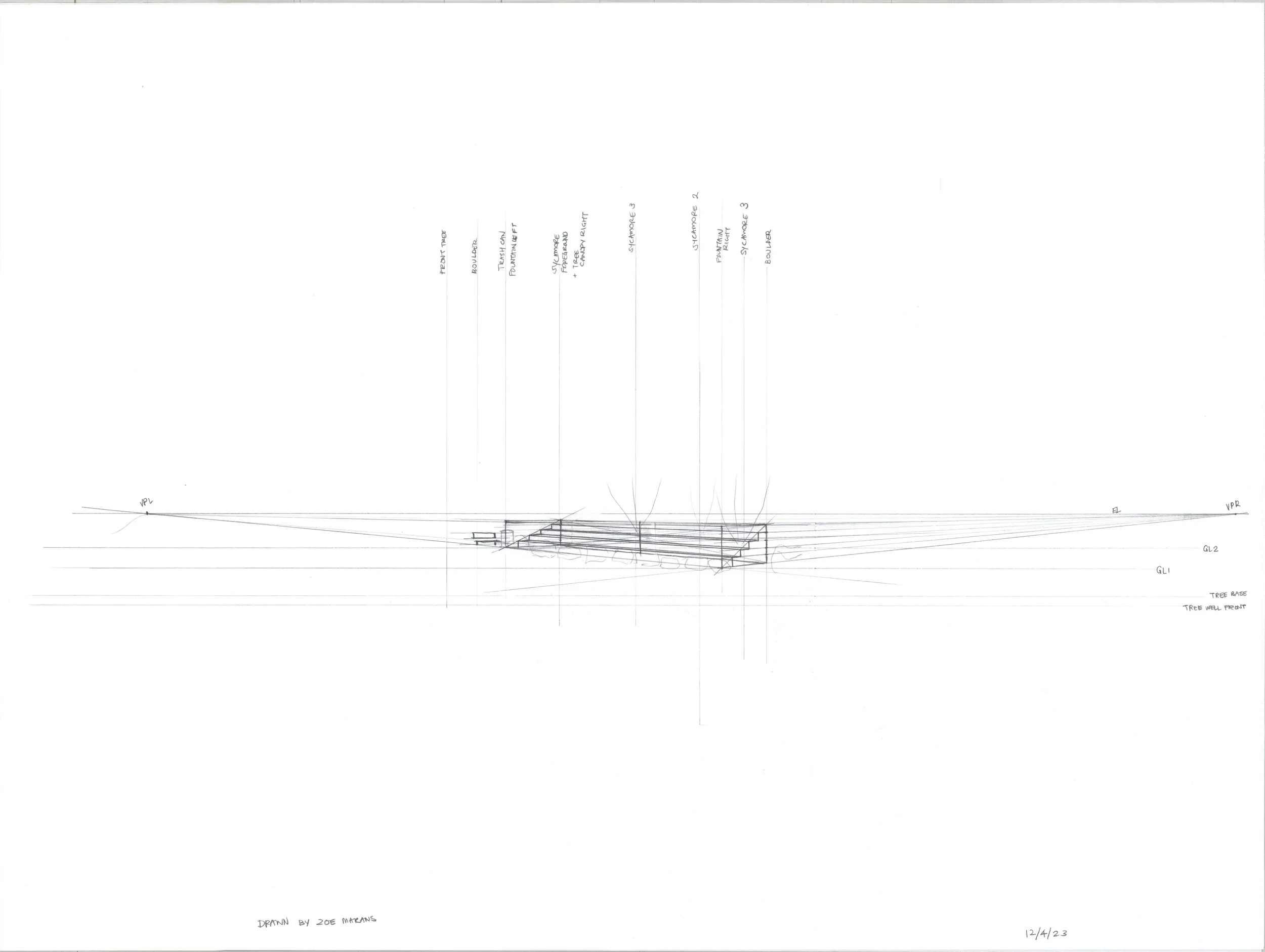

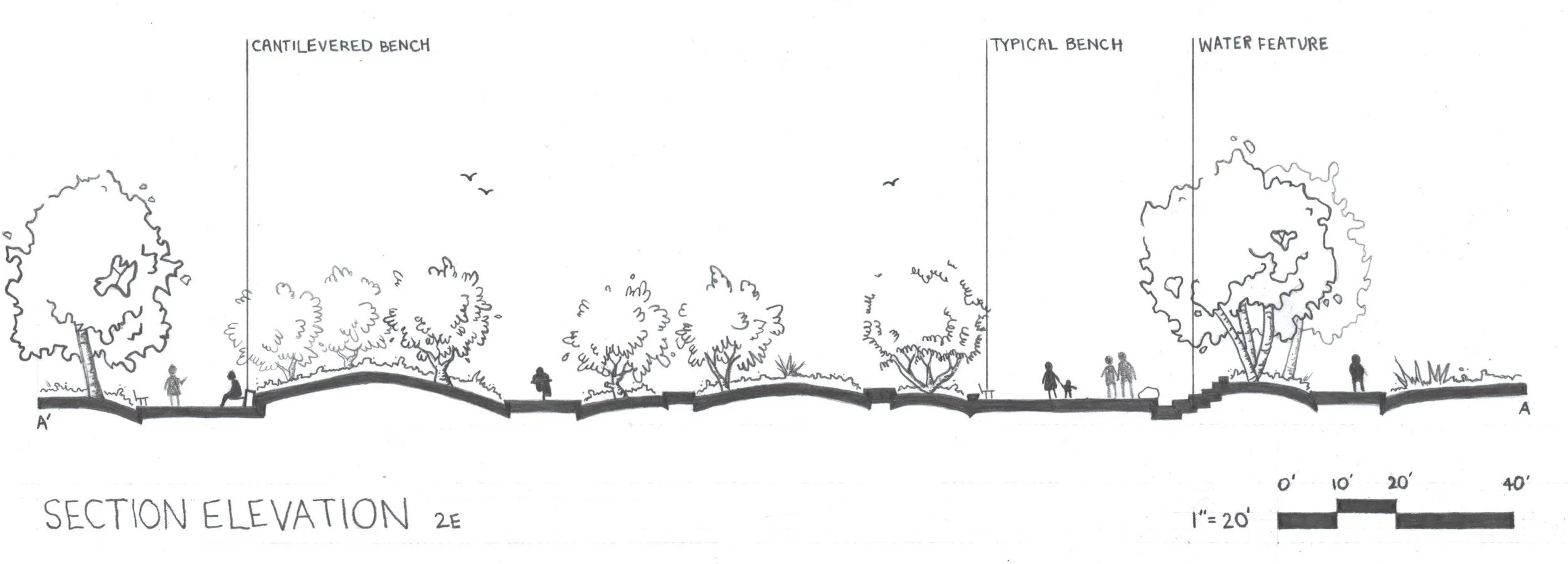

This work explores the existing built landscape of Tongva Park in Santa Monica, CA, designed by Field Operations, by hand drafting and drawing elements within the park as a plan, section, and perspective. This academic class taught me the importance of lineweights and different graphical viewpoints to best communicate a landscape and design intent. All graphics were drawn by hand on vellum using graphite pencils, black ink pens, and standard hand drafting equipment.

AWARDS & ACCOLADES

Silver SCASLA Achievement Award, 2024 UCLAx Student Show

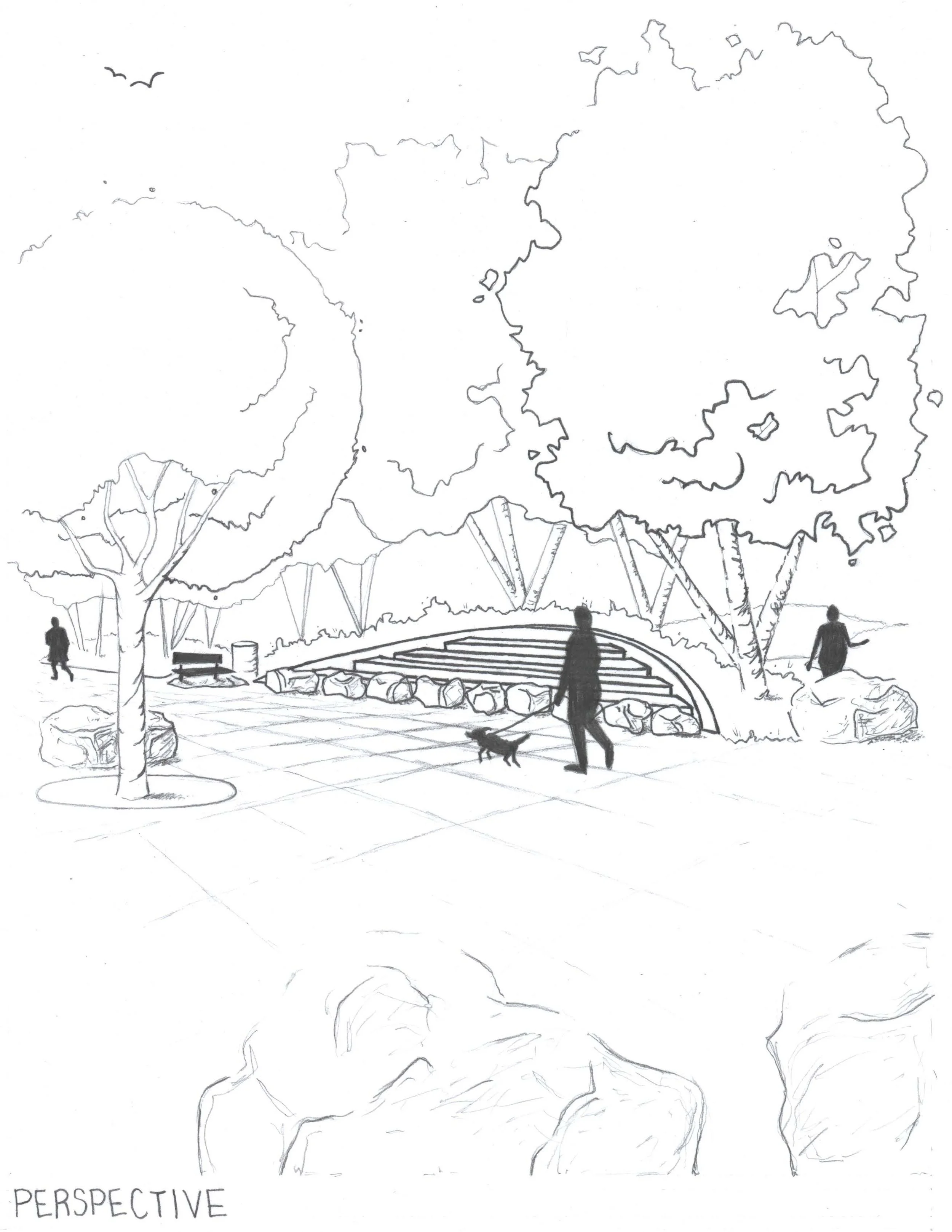

“The judges appreciated the nice trees in the section elevation and noted the good variation in line work. The perspective was well done, with people included to scale. The plan view was also praised for its good details, providing clarity on key elements”
